Description
Product details of ZVS Heating Module Heating Plate ZVS Heating Board High Performance Low Voltage DC5V-12V with Coil Energy Supply Components Induction Heating Power Induction Welding Electrical Circuit

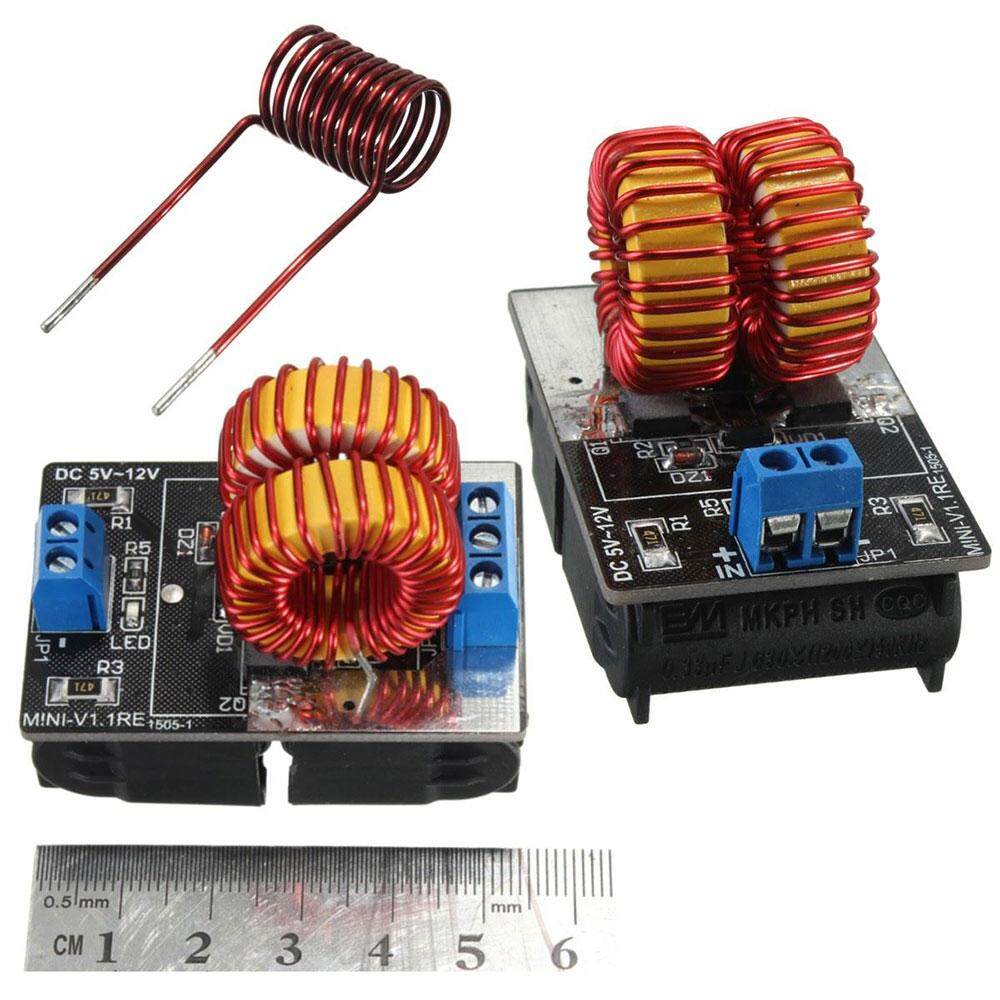

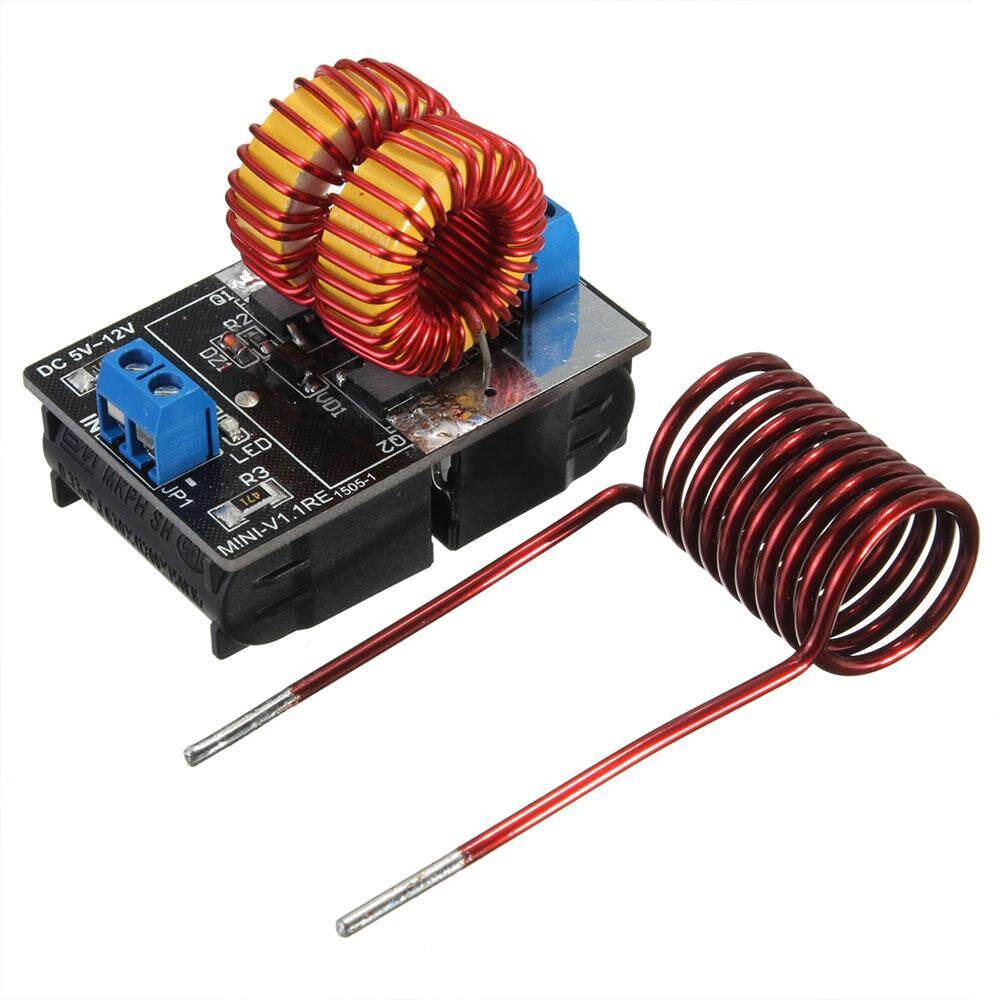

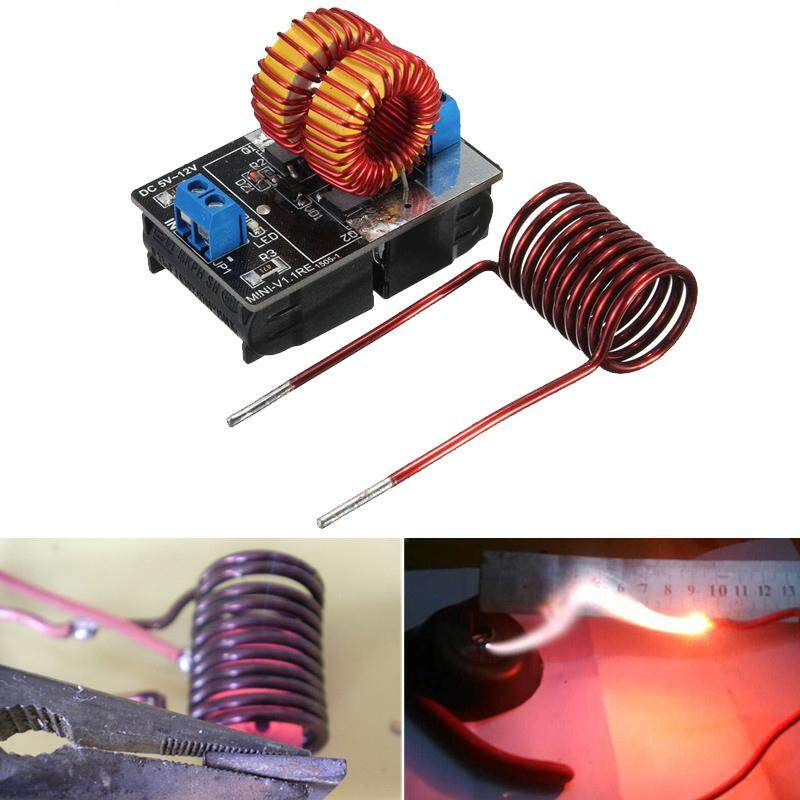

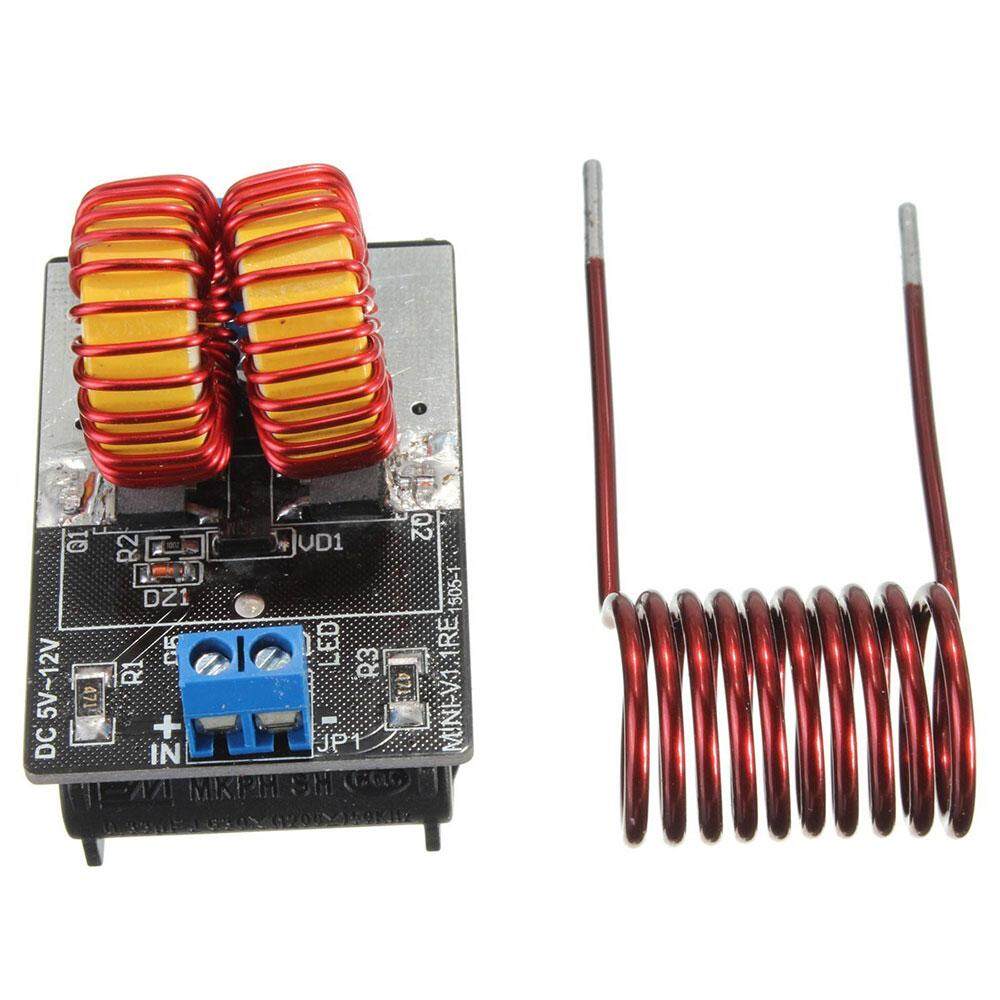

- ZVS heating power supply module including heating coil.
- Input voltage DC5V-12V(We are not guarantee the module will work when the voltage is over 12V or less than 5V).
- Maximum power 120W (when 12V eddy-current heating).
- Ensure all the components welding right, power line connect in right way,than to set up an electric circuit.
- The width of the heated object is as far as possible between the 1/3~1/2 of the inner diameter of the heating coil, the maximum not more than 2/3!
Specification:
Color: black + copper yellow
Material: pcb board + components

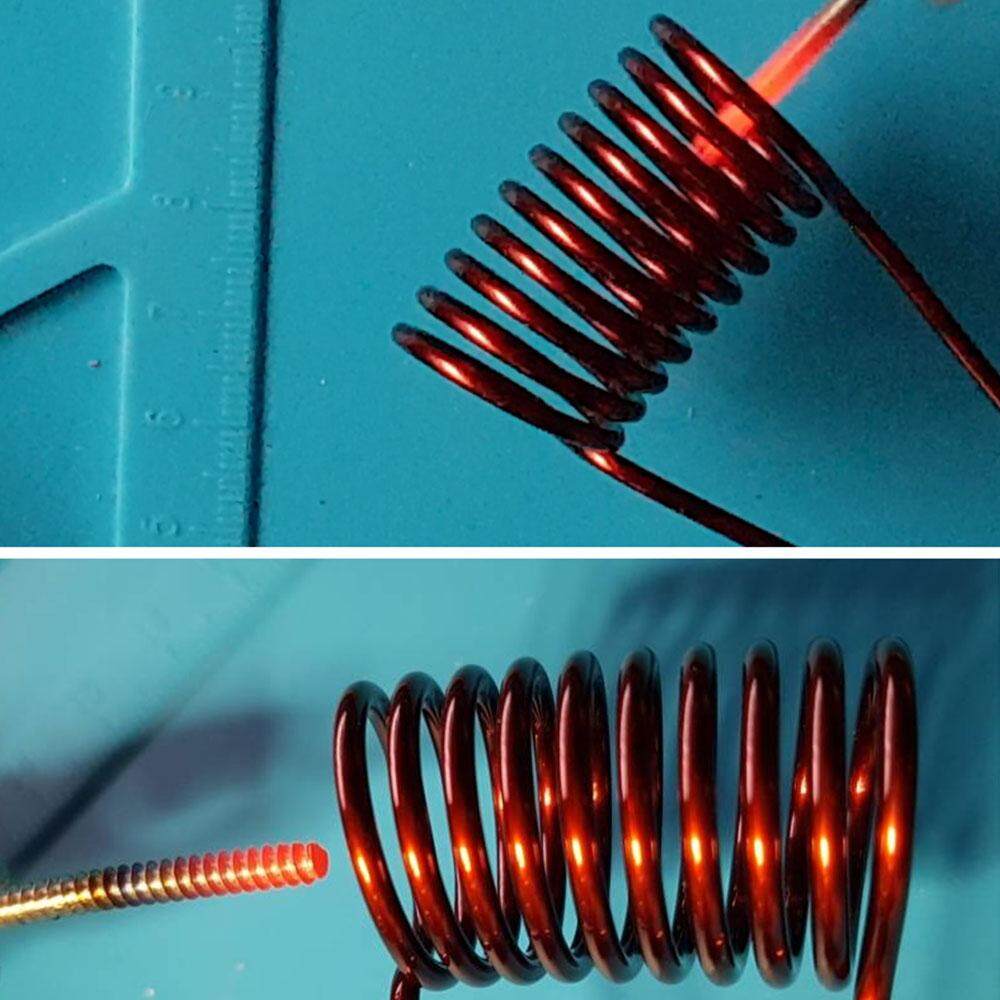

Role: induction heating
Input voltage: DC 5V-12V (when the voltage is greater than 12V or less than 5V, we are not sure whether the module is working)
Maximum power: 120 W (12V eddy current heating)
Note: Make sure that all welded parts and power cords are connected in the correct way. The width of the heated object is between 1/3 and 1/2 of the inner diameter of the heating coil, and the maximum is not more than 2/3.
Product Size:
Module: 5.5 x 4 x 4 CM
Coil: 7.5 x 2.8 x 1.5 CM
Packing List:
1 x Mini ZVS Induction Heating Module
1 x Coil
Color: black + copper yellow
Material: pcb board + components
Role: induction heating
Input voltage: DC 5V-12V (when the voltage is greater than 12V or less than 5V, we are not sure whether the module is working)
Maximum power: 120 W (12V eddy current heating)
Note: Make sure that all welded parts and power cords are connected in the correct way. The width of the heated object is between 1/3 and 1/2 of the inner diameter of the heating coil, and the maximum is not more than 2/3.
Product Size:
Module: 5.5 x 4 x 4 CM
Coil: 7.5 x 2.8 x 1.5 CM
Packing List:
1 x Mini ZVS Induction Heating Module
1 x Coil
Specifications of ZVS Heating Module Heating Plate ZVS Heating Board High Performance Low Voltage DC5V-12V with Coil Energy Supply Components Induction Heating Power Induction Welding Electrical Circuit
- Brand
No Brand
- SKU
488210619_MY-849938689
- Warranty Type
No Warranty
- Model
166333-11392008
